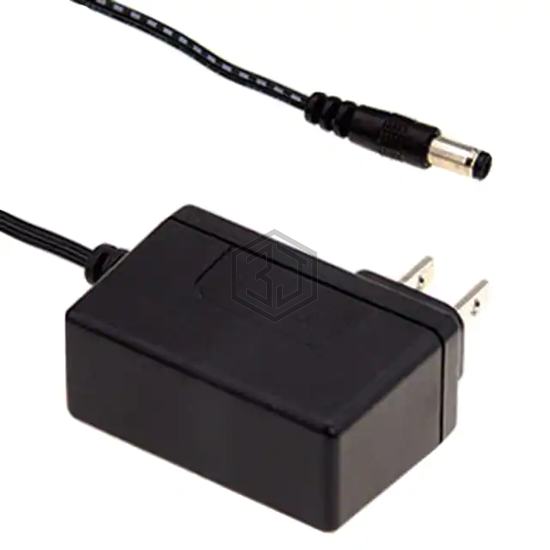

AC/DC WALL MOUNT ADAPTER 48V 12W
SGA12U48-P1J is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC WALL MOUNT ADAPTER 48V 12W. Key specifications: operating temperature -20°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 250mA, size / dimension 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm).
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 48V |
| Current - Output (Max) | 250mA |
| Power (Watts) | 12 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -20°C ~ 60°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) |
| Approval Agency | CB, cURus |
| Standard Number | - |
Submit your RFQ for SGA12U48-P1J and get a quote within 24 hours.
