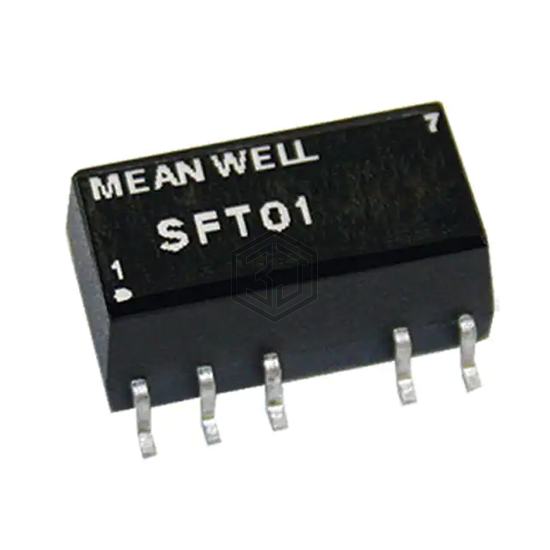

DC DC CONVERTER 5V 1W
SFT01M-05 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 5V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (With Derating), package / case 12-SMD Module, 10 Leads, current - output (max) 200mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 70% |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD Module, 10 Leads |
| Size / Dimension | 0.60" L x 0.30" W x 0.25" H (15.2mm x 7.5mm x 6.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SFT01M-05 and get a quote within 24 hours.
