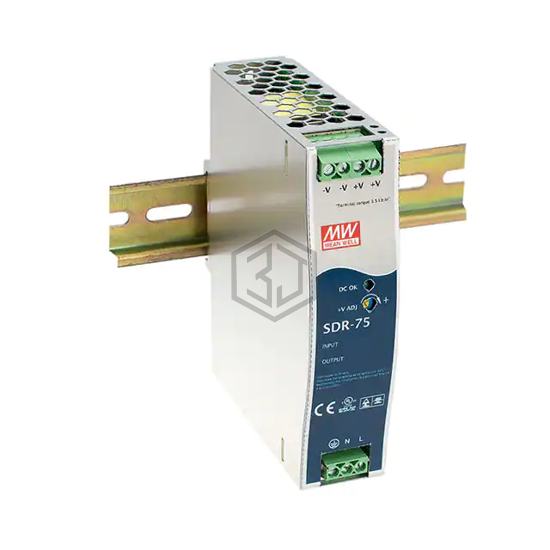

AC/DC CONVERTER 24V 77W
SDR-75-24 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 24V 77W. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 3.2A, size / dimension 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm), number of outputs 1.
In Stock: 577
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.2A |
| Power (Watts) | 77W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) |
| Approval Agency | CB, CE, cULus, TUV |
| Standard Number | - |
Submit your RFQ for SDR-75-24 and get a quote within 24 hours.
