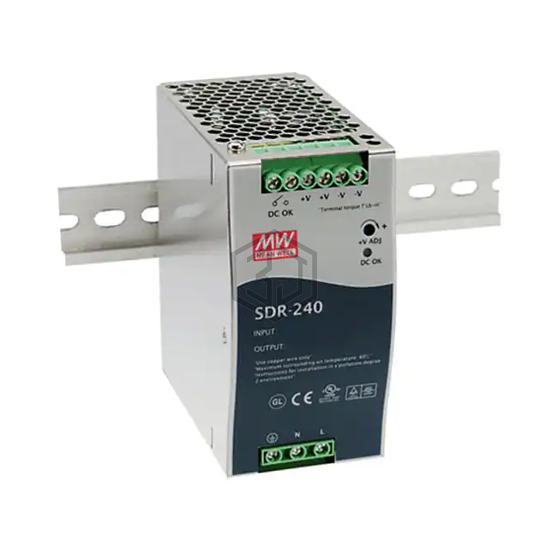

AC/DC CONVERTER 48V 240W
SDR-240-48 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 240W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 5A, size / dimension 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm), number of outputs 1.
In Stock: 522
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | 124V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 240W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 94% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) |
| Approval Agency | CB, CE, cULus, TUV |
| Standard Number | - |
Submit your RFQ for SDR-240-48 and get a quote within 24 hours.
