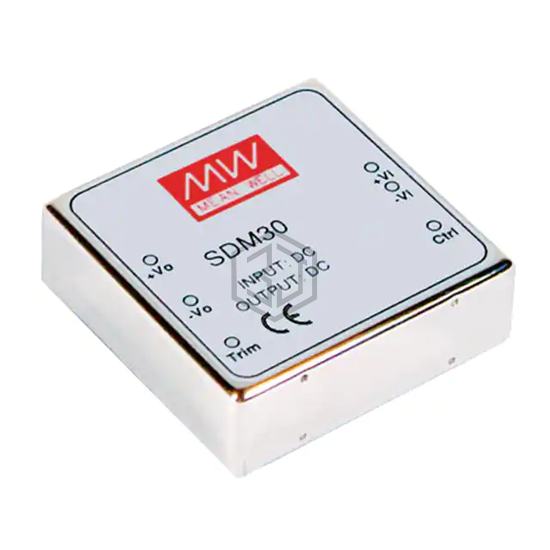

DC DC CONVERTER 5V 25W
SDM30-12S5 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 5V 25W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (With Derating), package / case 8-DIP Module, current - output (max) 5A.
In Stock: 159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9.2V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 25 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -25°C ~ 85°C (With Derating) |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SDM30-12S5 and get a quote within 24 hours.
