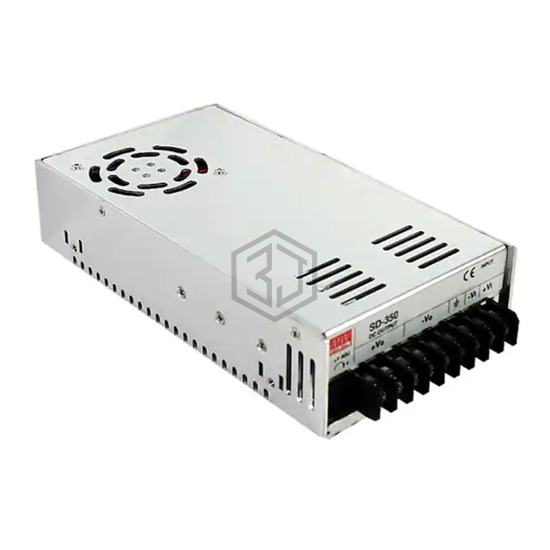

DC/DC CONVERTER 48V 350W
SD-350C-48 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 48V 350W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 60°C (With Derating), current - output (max) 7.3A, size / dimension 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 72V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7.3A |
| Power (Watts) | 350W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 82% |
| Operating Temperature | -20°C ~ 60°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for SD-350C-48 and get a quote within 24 hours.
