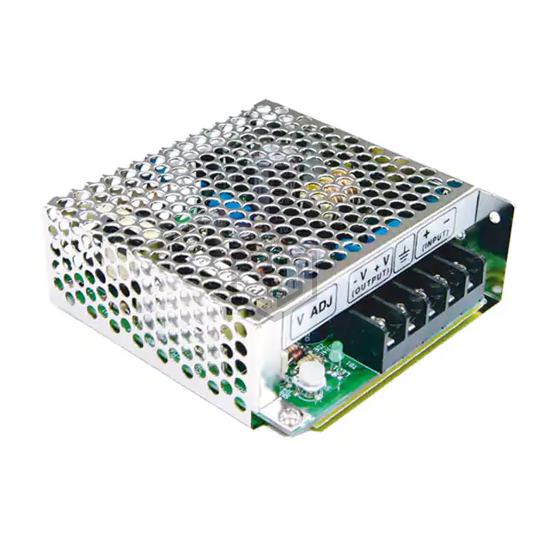

DC/DC CONVERTER 12V 25W
SD-25A-12 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 12V 25W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), current - output (max) 2.1A, size / dimension 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm).
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9.2V |
| Voltage - Input (Max) | 18V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.1A |
| Power (Watts) | 25W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 72% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) |
| Approval Agency | CE |
| Standard Number | - |
