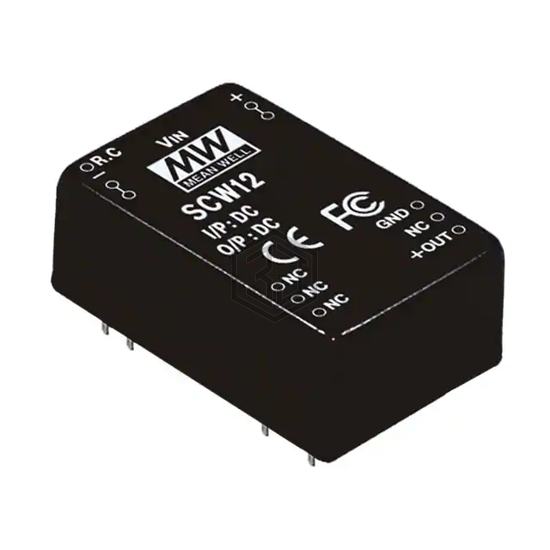

DC DC CONVERTER 15V 12W
SCW12A-15 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 15V 12W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C (With Derating), package / case 24-DIP Module, 8 Leads, current - output (max) 800mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 800mA |
| Power (Watts) | 12 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 8 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SCW12A-15 and get a quote within 24 hours.
