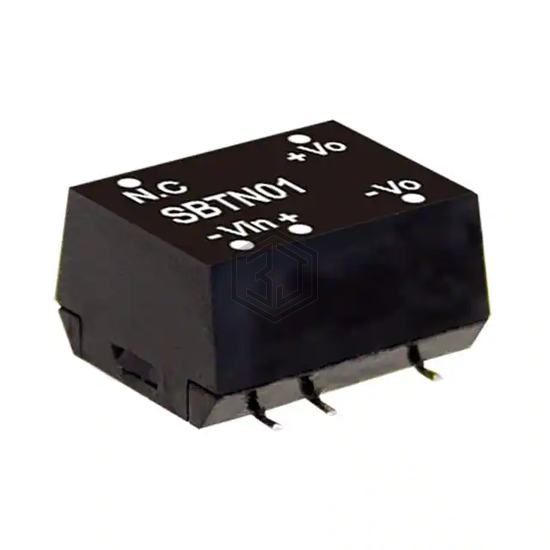

DC DC CONVERTER 5V 1W
SBTN01L-05 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 5V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 90°C (With Derating), package / case 8-SMD Module, 5 Leads, current - output (max) 200mA.
In Stock: 99
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Efficiency | 78% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SBTN01L-05 and get a quote within 24 hours.
