DC/DC MODULE 20W,I/P: 8.5-160VDC

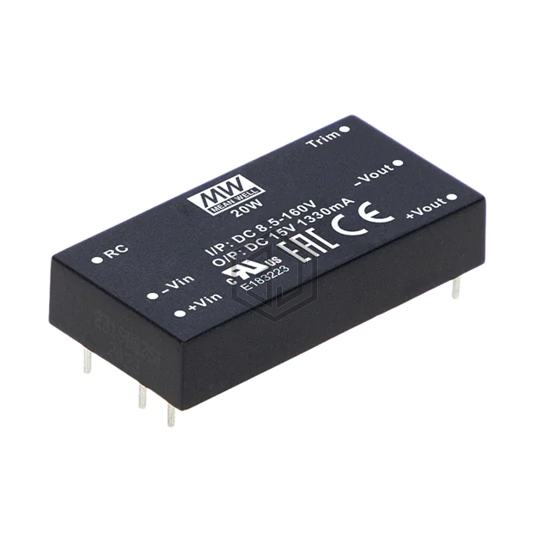

RSDW20UW-15 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC MODULE 20W,I/P: 8.5-160VDC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C (With Derating), package / case 6-DIP Module, current - output (max) 1.33A.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8.5V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.33A |
| Power (Watts) | 20 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 89% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus, EAC, UL |
| Standard Number | - |
