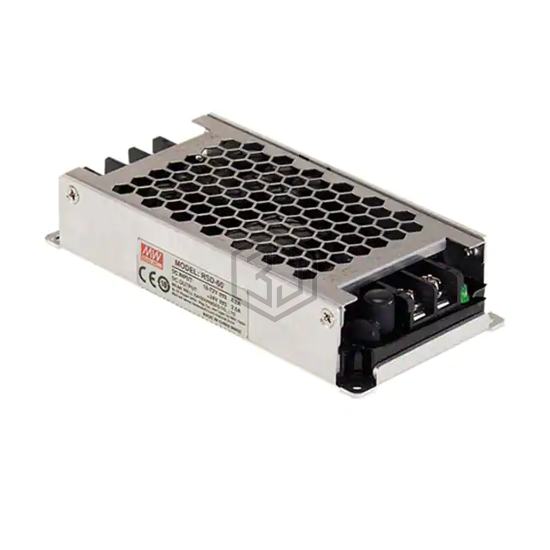

DC/DC CONVERTER 3.3V 40W
RSD-60G-3.3 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 3.3V 40W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 12A, size / dimension 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm).
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 12A |
| Power (Watts) | 40W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 86.5% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm) |
| Approval Agency | CE |
| Standard Number | - |
