DC/DC CONVERTER 24V 30W

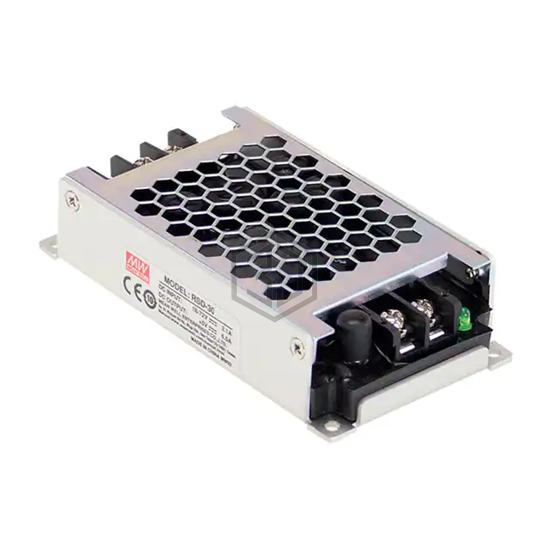

RSD-30H-24 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 24V 30W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 1.25A, size / dimension 4.45" L x 2.36" W x 0.98" H (113.0mm x 60.0mm x 25.0mm).
In Stock: 6,102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 160V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 30W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 89% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.45" L x 2.36" W x 0.98" H (113.0mm x 60.0mm x 25.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for RSD-30H-24 and get a quote within 24 hours.
