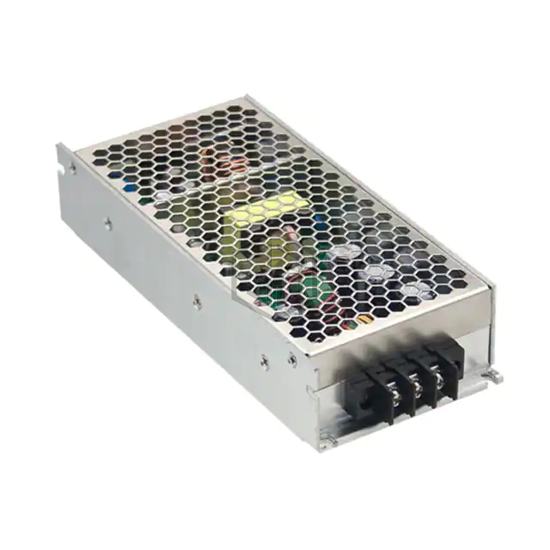

DC/DC CONVERTER 12V 200W
RSD-200D-12 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 12V 200W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 16.7A, size / dimension 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm).
In Stock: 49
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 67.2V |
| Voltage - Input (Max) | 143V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16.7A |
| Power (Watts) | 200W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 91% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for RSD-200D-12 and get a quote within 24 hours.
