DC/DC CONVERTER 24V 202W

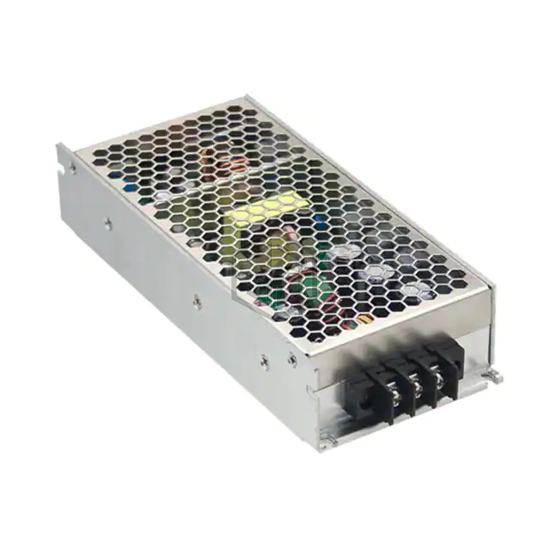

RSD-200B-24 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 24V 202W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 8.4A, size / dimension 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm).
In Stock: 2,836
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 16.8V |
| Voltage - Input (Max) | 31.2V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.4A |
| Power (Watts) | 202W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 89% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for RSD-200B-24 and get a quote within 24 hours.
