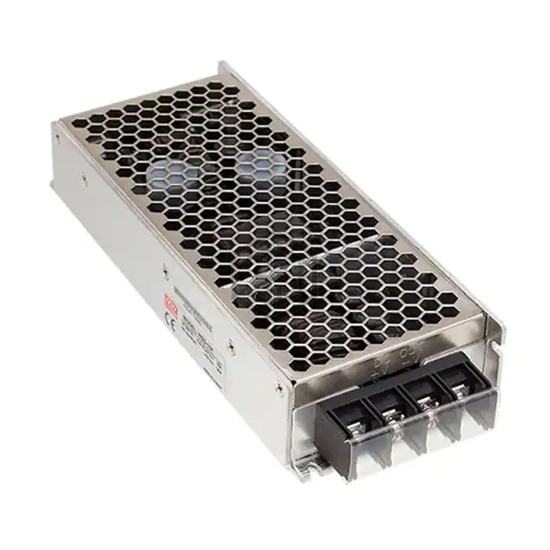

DC/DC CONVERTER 24V 151W
RSD-150C-24 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 24V 151W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 6.3A, size / dimension 7.44" L x 3.03" W x 1.42" H (189.0mm x 77.0mm x 36.0mm).
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 33.6V |
| Voltage - Input (Max) | 62.4V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.3A |
| Power (Watts) | 151W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 91% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.44" L x 3.03" W x 1.42" H (189.0mm x 77.0mm x 36.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for RSD-150C-24 and get a quote within 24 hours.
