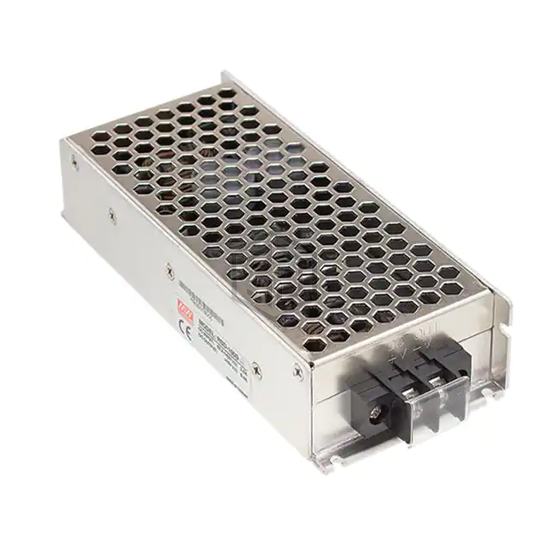

DC/DC CONVERTER 5V 100W
RSD-100B-5 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 5V 100W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 6.34" L x 2.68" W x 1.42" H (161.0mm x 68.0mm x 36.0mm).
In Stock: 1,812
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 16.8V |
| Voltage - Input (Max) | 31.2V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 100W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.34" L x 2.68" W x 1.42" H (161.0mm x 68.0mm x 36.0mm) |
| Approval Agency | CE |
| Standard Number | - |
