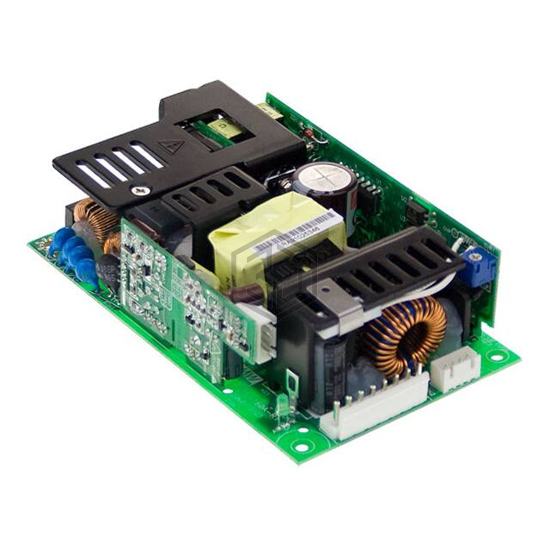

AC/DC CONVERTER 5V 12V -5V 96W
RPTG-160A is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 5V 12V -5V 96W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.6mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -5V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 9 A |
| Current - Output 2 | 3.8 A |
| Current - Output 3 | 600 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 96W (141W Forced Air) |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 84% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.6mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for RPTG-160A and get a quote within 24 hours.
