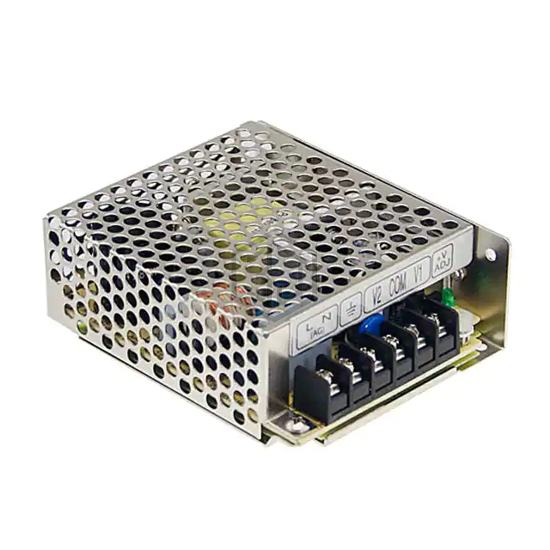

AC/DC CONVERTER +/-13.5V 35W
RD-3513 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER +/-13.5V 35W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 88 ~ 264 VAC, 125 ~ 373 VDC, size / dimension 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm).
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 88 ~ 264 VAC, 125 ~ 373 VDC |
| Voltage - Output 1 | 13.5V |
| Voltage - Output 2 | -13.5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.3 A |
| Current - Output 2 | 1.3 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 35W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 80% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
