AC/DC CONVERTER 5V 24V 133W

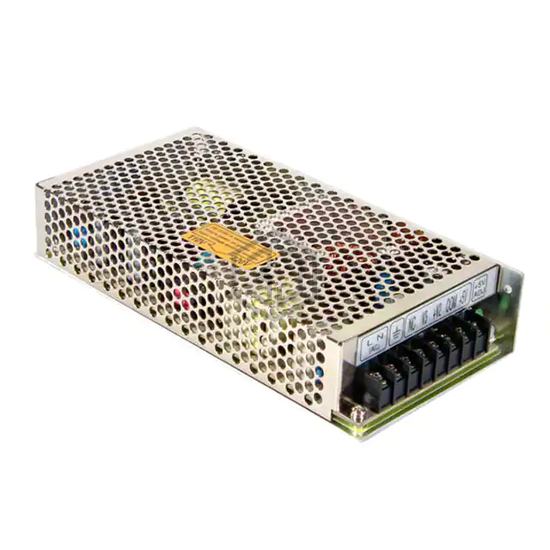

RD-125B is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 5V 24V 133W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC, size / dimension 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.6 A |
| Current - Output 2 | 4.6 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 133W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 85% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for RD-125B and get a quote within 24 hours.
