AC/DC CNVRT 5V 12V 24V -12V 316W

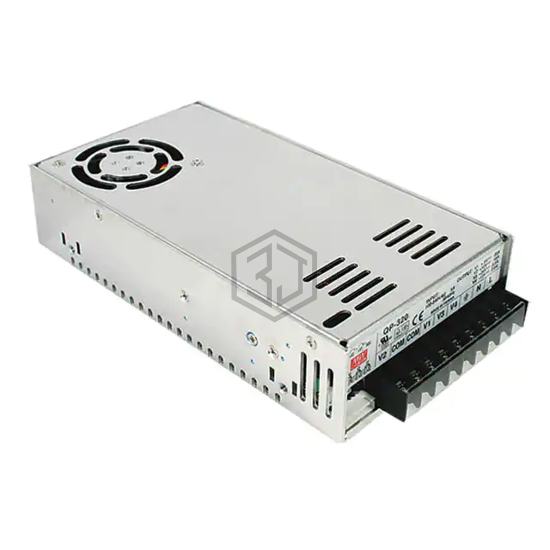

QP-320D is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CNVRT 5V 12V 24V -12V 316W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm).
In Stock: 884
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 4 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | 24V |
| Voltage - Output 4 | -12V |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 20 A |
| Current - Output 2 | 10 A |
| Current - Output 3 | 3 A |
| Current - Output 4 | 2 A |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 316W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 83% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) |
| Approval Agency | CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for QP-320D and get a quote within 24 hours.
