AC/DC CNVRTR 5V 3.3V +/-12V 150W

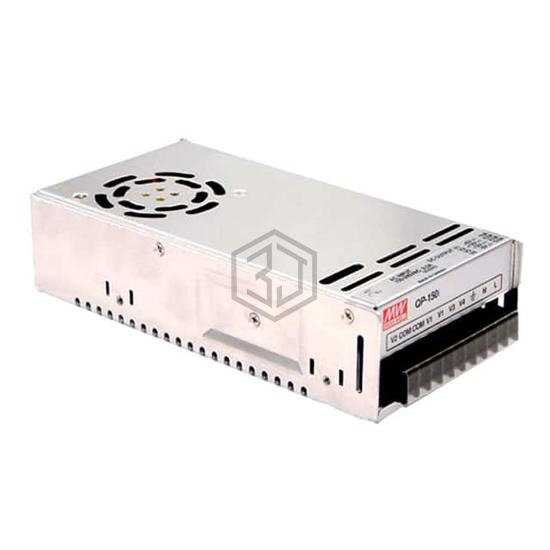

QP-150-3B is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CNVRTR 5V 3.3V +/-12V 150W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm).
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 4 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10 A |
| Current - Output 2 | 10 A |
| Current - Output 3 | 5 A |
| Current - Output 4 | 600 mA |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 150W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 75% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for QP-150-3B and get a quote within 24 hours.
