LED DRIVER CV AC/DC 36V 2.5A

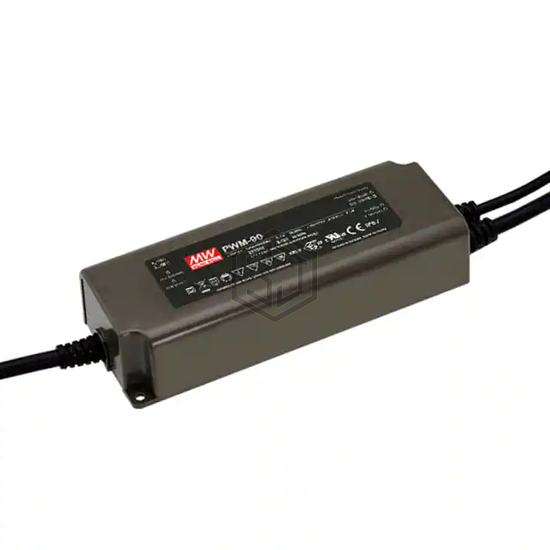

PWM-90-36 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 36V 2.5A. Key specifications: operating temperature -40°C ~ 85°C, voltage - output 36V, current - output (max) 2.5A, size / dimension 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm).
In Stock: 8,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 36V |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 90 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 90.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.73" L x 2.48" W x 1.48" H (171.0mm x 63.0mm x 37.5mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for PWM-90-36 and get a quote within 24 hours.
