LED DRIVER CV AC/DC 24V 1.67A

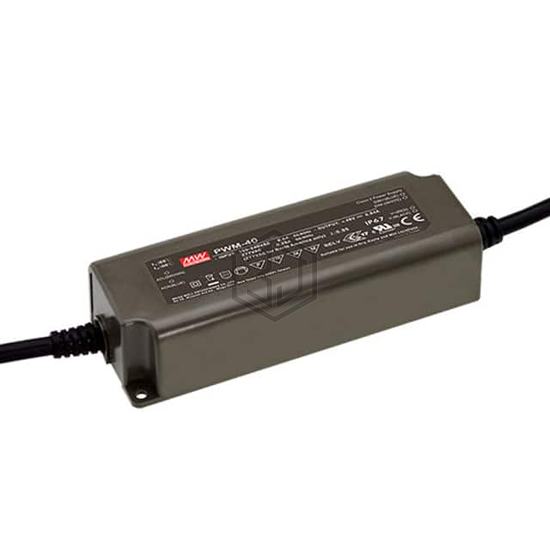

PWM-40-24 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 24V 1.67A. Key specifications: operating temperature -40°C ~ 85°C, voltage - output 24V, current - output (max) 1.67A, size / dimension 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm).
In Stock: 164
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.67A |
| Power (Watts) | 40 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 89% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for PWM-40-24 and get a quote within 24 hours.
