AC/DC CONVERTER 5V +/-12V 64W

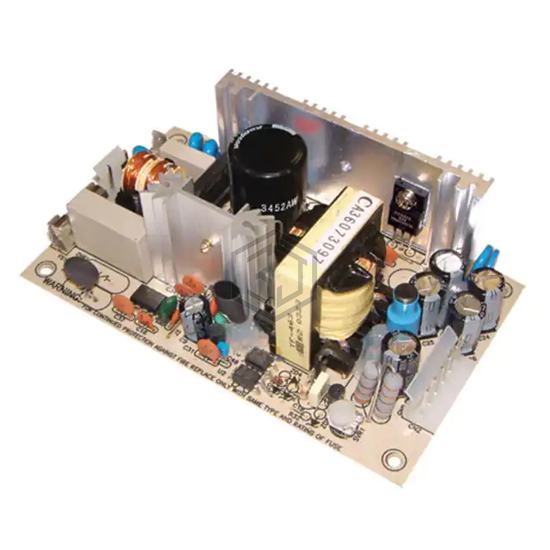

PT-65B is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 5V +/-12V 64W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm).
In Stock: 232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5.5 A |
| Current - Output 2 | 2.5 A |
| Current - Output 3 | 500 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 64W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 77% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
