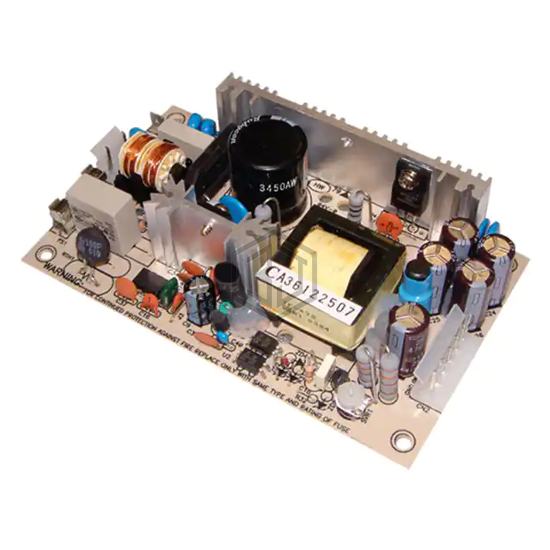

AC/DC CONVERTER 5V +/-15V 44W
PT-45C is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 5V +/-15V 44W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3 A |
| Current - Output 2 | 1.6 A |
| Current - Output 3 | 300 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 44W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 75% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for PT-45C and get a quote within 24 hours.
