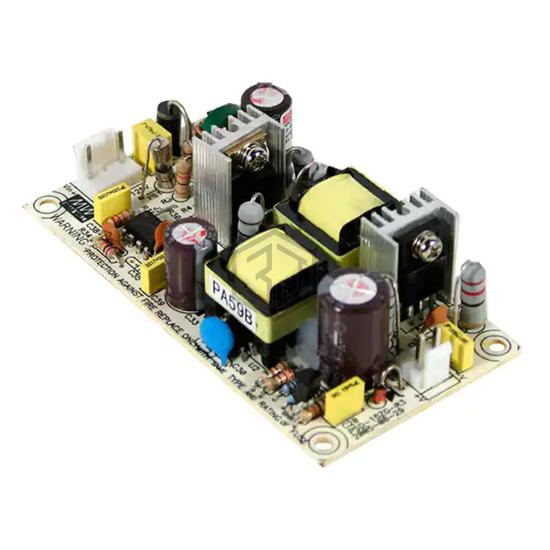

DC/DC CONVERTER 5V 15W
PSD-15B-5 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 5V 15W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), current - output (max) 3A, size / dimension 3.70" L x 1.93" W x 0.98" H (94.0mm x 49.0mm x 25.0mm).
In Stock: 6,617
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 15W |
| Voltage - Isolation | 2 kV |
| Applications | ITE (Commercial) |
| Efficiency | 78% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.70" L x 1.93" W x 0.98" H (94.0mm x 49.0mm x 25.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for PSD-15B-5 and get a quote within 24 hours.
