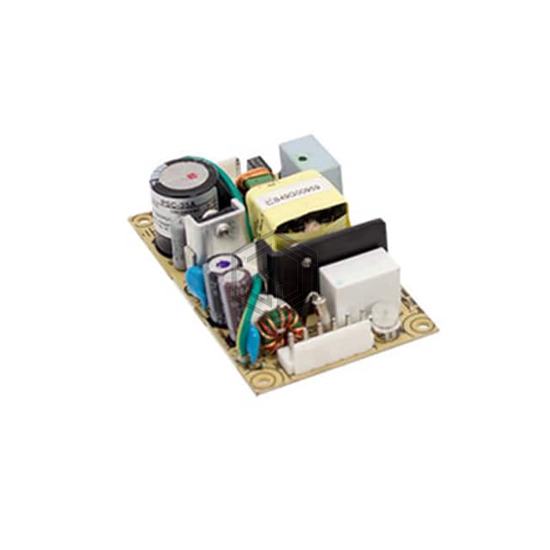

AC/DC CONVERTER 13.8V 13.8V 36W
PSC-35A is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 13.8V 13.8V 36W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 3.33" L x 2.00" W x 0.94" H (84.6mm x 50.8mm x 24.0mm).
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 13.8V |
| Voltage - Output 2 | 13.8V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.7 A |
| Current - Output 2 | 900 mA |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 36W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 84% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.33" L x 2.00" W x 0.94" H (84.6mm x 50.8mm x 24.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
