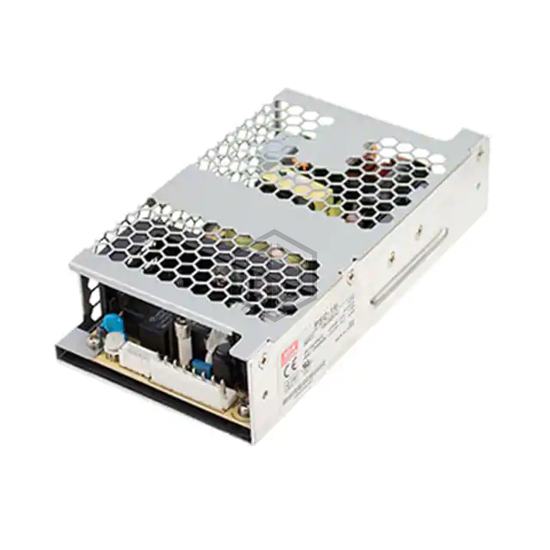

AC/DC CONVERTER 27.6V 27.6V 160W
PSC-160B-C is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 27.6V 27.6V 160W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 6.12" L x 3.35" W x 1.46" H (155.4mm x 85.0mm x 37.0mm).
In Stock: 223
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 27.6V |
| Voltage - Output 2 | 27.6V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.8 A |
| Current - Output 2 | 2 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 160W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.12" L x 3.35" W x 1.46" H (155.4mm x 85.0mm x 37.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for PSC-160B-C and get a quote within 24 hours.
