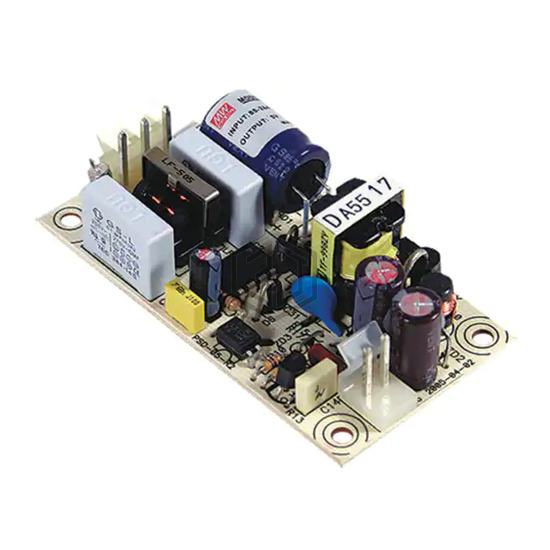

AC/DC CONVERTER 15V 5W
PS-05-15 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 15V 5W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 2.95" L x 1.57" W x 0.79" H (75.0mm x 40.0mm x 20.0mm).
In Stock: 107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 350 mA |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 5W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 75% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.95" L x 1.57" W x 0.79" H (75.0mm x 40.0mm x 20.0mm) |
| Approval Agency | CB, CE |
| Standard Number | - |
Submit your RFQ for PS-05-15 and get a quote within 24 hours.
