LED DRVR CC AC/DC 36-48V 950MA

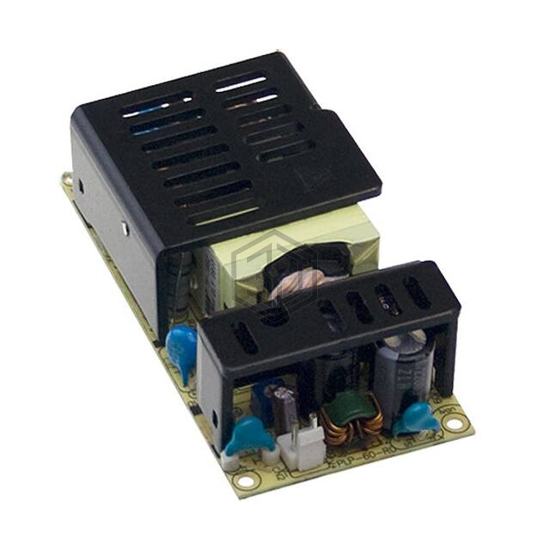

PLP-45-48 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 36-48V 950MA. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 36 ~ 48V, current - output (max) 950mA, size / dimension 4.00" L x 2.00" W x 1.17" H (101.6mm x 50.8mm x 29.6mm).
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 36 ~ 48V |
| Current - Output (Max) | 950mA |
| Power (Watts) | 46 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | - |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 89% |
| Termination Style | Rectangular, 2 Position |
| Size / Dimension | 4.00" L x 2.00" W x 1.17" H (101.6mm x 50.8mm x 29.6mm) |
| Approval Agency | CB, CCC, CE, TUV, UR |
| Standard Number | - |
Submit your RFQ for PLP-45-48 and get a quote within 24 hours.
