LED DRVR CC AC/DC 27-36V 1.25A

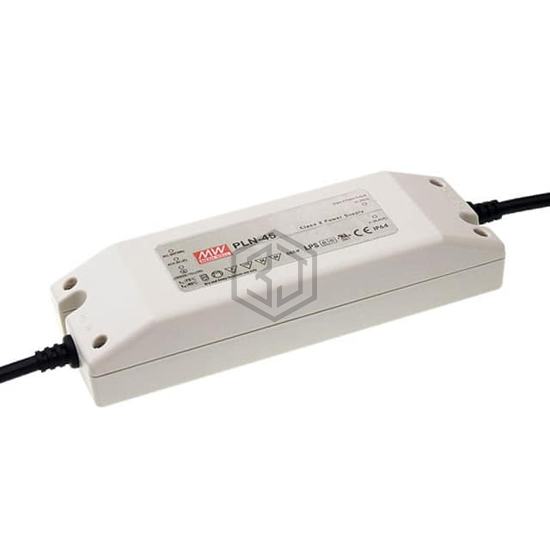

PLN-45-36 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 27-36V 1.25A. Key specifications: operating temperature -30°C ~ 50°C, voltage - output 27 ~ 36V, current - output (max) 1.25A, size / dimension 7.13" L x 2.42" W x 1.38" H (181.0mm x 61.5mm x 35.0mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 27 ~ 36V |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 45 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP64 |
| Operating Temperature | -30°C ~ 50°C |
| Efficiency | 87.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 7.13" L x 2.42" W x 1.38" H (181.0mm x 61.5mm x 35.0mm) |
| Approval Agency | CB, CE, cURus, PSE, TUV |
| Standard Number | - |
Submit your RFQ for PLN-45-36 and get a quote within 24 hours.
