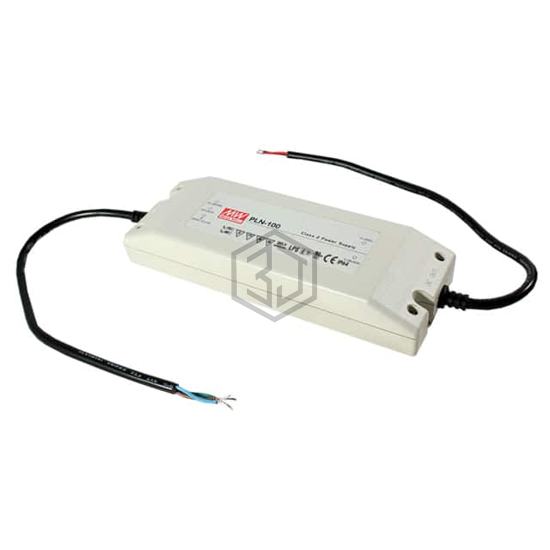

LED DRIVER CC/CV AC/DC 9-12V 5A
PLN-100-12 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC/CV AC/DC 9-12V 5A. Key specifications: operating temperature -30°C ~ 50°C, voltage - output 9 ~ 12V, current - output (max) 5A, size / dimension 7.87" L x 2.78" W x 1.38" H (200.0mm x 70.5mm x 35.0mm).
In Stock: 6,902
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 9 ~ 12V |
| Current - Output (Max) | 5A |
| Power (Watts) | 60 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP64 |
| Operating Temperature | -30°C ~ 50°C |
| Efficiency | 83% |
| Termination Style | Wire Leads |
| Size / Dimension | 7.87" L x 2.78" W x 1.38" H (200.0mm x 70.5mm x 35.0mm) |
| Approval Agency | CB, CE, cURus, PSE, TUV |
| Standard Number | - |
Submit your RFQ for PLN-100-12 and get a quote within 24 hours.
