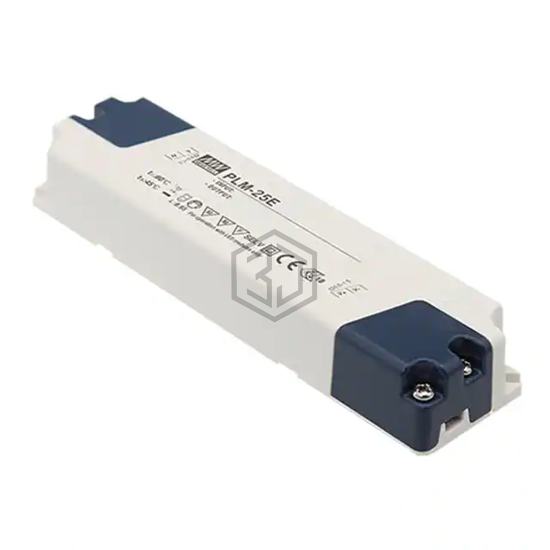

LED DRVR CC AC/DC 21-36V 700MA
PLM-25E-700 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 21-36V 700MA. Key specifications: operating temperature -30°C ~ 45°C, voltage - output 21 ~ 36V, current - output (max) 700mA, size / dimension 5.71" L x 1.50" W x 0.87" H (145.0mm x 38.0mm x 22.0mm).
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 21 ~ 36V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 25 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | SCP |
| Ratings | IP30 |
| Operating Temperature | -30°C ~ 45°C |
| Efficiency | 85% |
| Termination Style | Terminal Block |
| Size / Dimension | 5.71" L x 1.50" W x 0.87" H (145.0mm x 38.0mm x 22.0mm) |
| Approval Agency | CB, CCC, CE, ENEC |
| Standard Number | - |
Submit your RFQ for PLM-25E-700 and get a quote within 24 hours.
