AC/DC CONVERTER 48V 5V 251W

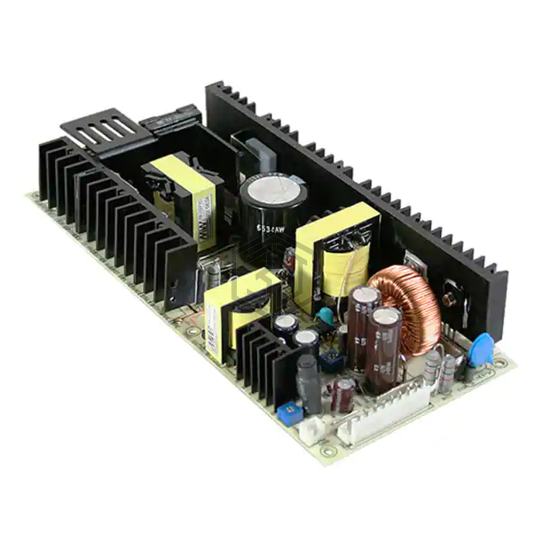

PID-250D is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 5V 251W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 8.74" L x 3.74" W x 1.57" H (222.0mm x 95.0mm x 40.0mm).
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.7 A |
| Current - Output 2 | 5 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 251W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 86% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.74" L x 3.74" W x 1.57" H (222.0mm x 95.0mm x 40.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
