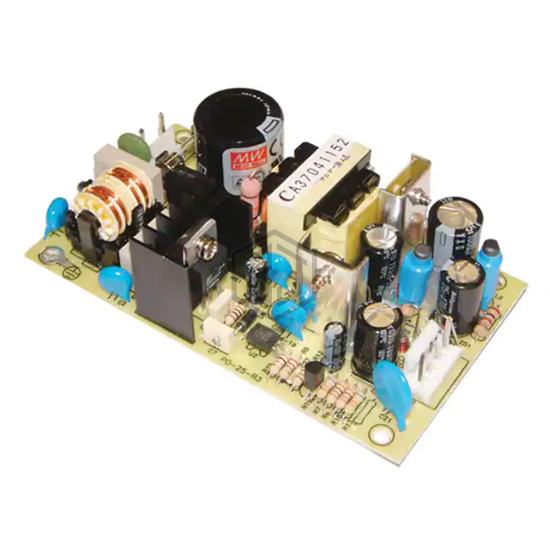

AC/DC CONVERTER +/-5V 25W
PD-2505 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER +/-5V 25W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm).
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.5 A |
| Current - Output 2 | 2.5 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 25W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 73% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for PD-2505 and get a quote within 24 hours.
