LED DRVR CC AC/DC 50-86V 700MA

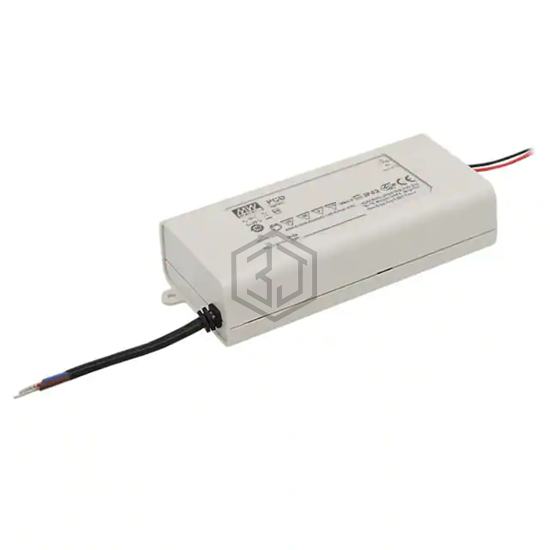

PCD-60-700B is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 50-86V 700MA. Key specifications: operating temperature -30°C ~ 45°C, voltage - output 50 ~ 86V, current - output (max) 700mA, size / dimension 5.04" L x 2.36" W x 1.24" H (128.0mm x 60.0mm x 31.5mm).
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 50 ~ 86V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 60 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Triac |
| Features | OTP, SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 45°C |
| Efficiency | 86% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.04" L x 2.36" W x 1.24" H (128.0mm x 60.0mm x 31.5mm) |
| Approval Agency | CB, CE, ENEC |
| Standard Number | - |
Submit your RFQ for PCD-60-700B and get a quote within 24 hours.
