LED DRVR CC AC/DC 16-24V 700MA

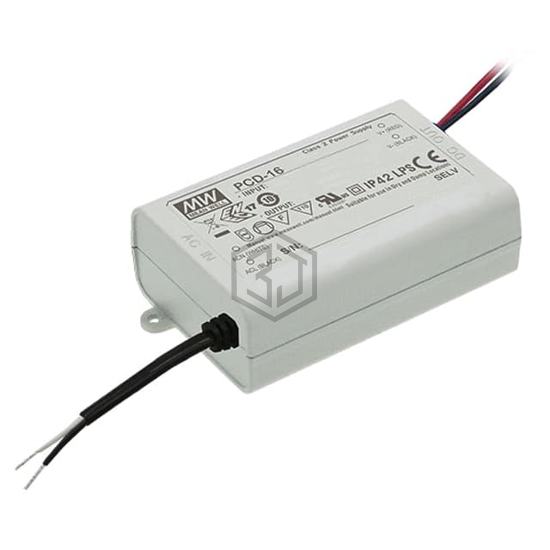

PCD-16-700A is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 16-24V 700MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 16 ~ 24V, current - output (max) 700mA, size / dimension 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm).
In Stock: 958
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 135VAC |
| Voltage - Output | 16 ~ 24V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 17 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Triac |
| Features | OTP, SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 81% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) |
| Approval Agency | cURus |
| Standard Number | - |
Submit your RFQ for PCD-16-700A and get a quote within 24 hours.
