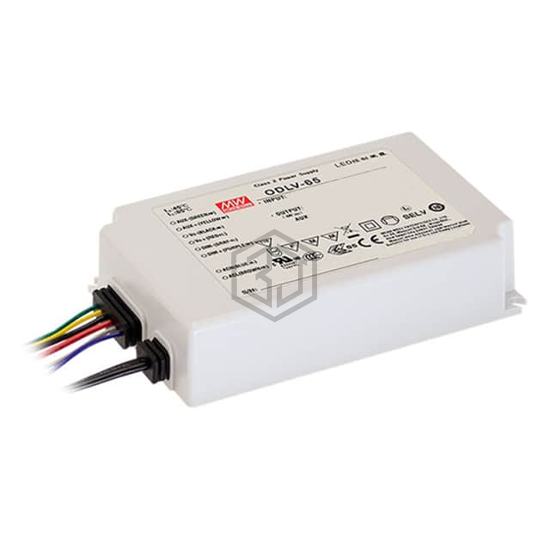

LED DRIVER CV AC/DC 12V 4.2A
ODLV-65-12 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 12V 4.2A. Key specifications: operating temperature -20°C ~ 85°C, voltage - output 12V, current - output (max) 4.2A, size / dimension 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 50 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, SCP |
| Ratings | IP67 |
| Operating Temperature | -20°C ~ 85°C |
| Efficiency | 85% |
| Termination Style | Wire Leads |
| Size / Dimension | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
Submit your RFQ for ODLV-65-12 and get a quote within 24 hours.
