LED DRIVER CC AC/DC 19-32V 1.4A

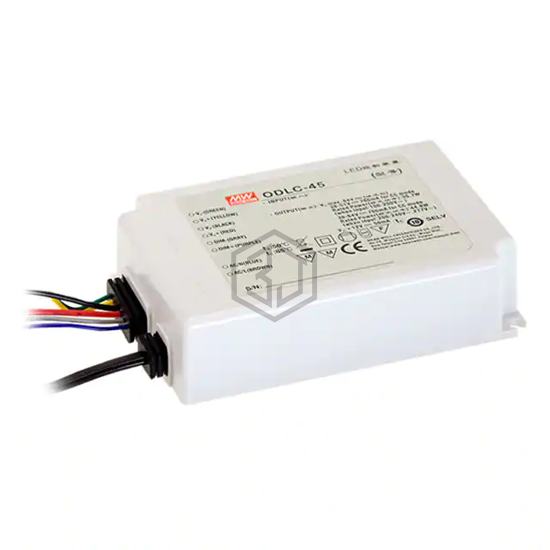

ODLC-45-1400 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 19-32V 1.4A. Key specifications: operating temperature -20°C ~ 85°C, voltage - output 19 ~ 32V, current - output (max) 1.4A, size / dimension 4.37" L x 3.03" W x 1.12" H (111.0mm x 77.0mm x 28.5mm).
In Stock: 8,476
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 19 ~ 32V |
| Current - Output (Max) | 1.4A |
| Power (Watts) | 45 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | SCP |
| Ratings | IP67 |
| Operating Temperature | -20°C ~ 85°C |
| Efficiency | 83% |
| Termination Style | Wire Leads |
| Size / Dimension | 4.37" L x 3.03" W x 1.12" H (111.0mm x 77.0mm x 28.5mm) |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Standard Number | - |
