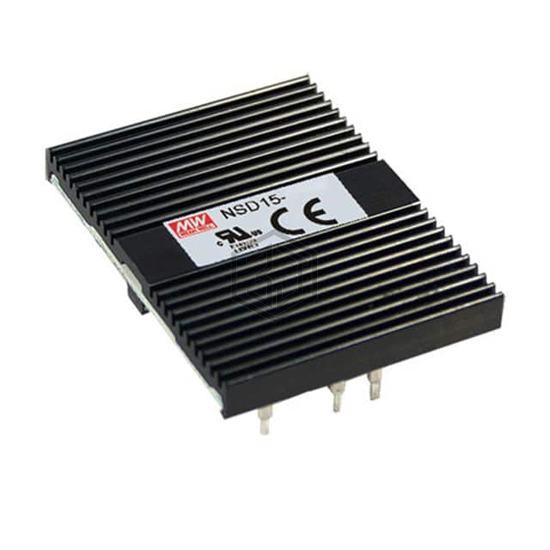

DC DC CONVERTER +/-12V 15W
NSD15-48D12 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER +/-12V 15W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C (With Derating), package / case 8-DIP Module, 7 Leads, current - output (max) 620mA, 620mA.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 620mA, 620mA |
| Power (Watts) | 15 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 7 Leads |
| Size / Dimension | 2.00" L x 1.50" W x 0.39" H (50.8mm x 38.1mm x 9.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
