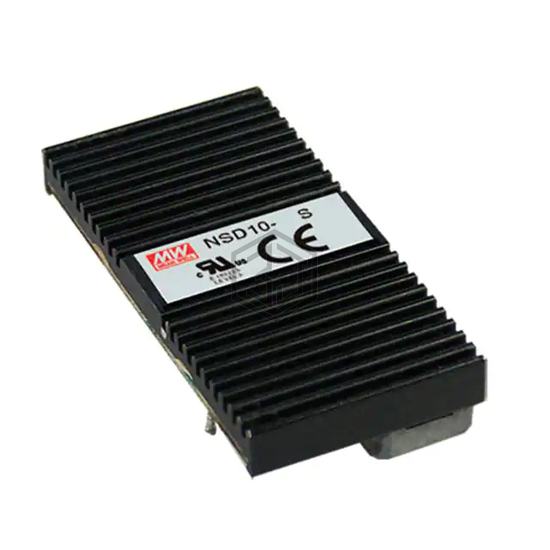

DC DC CONVERTER 3.3V 8.3W
NSD10-12S3 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 3.3V 8.3W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C (With Derating), package / case 6-DIP Module, current - output (max) 2.5A.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9.8V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 8.3 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Efficiency | 72% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for NSD10-12S3 and get a quote within 24 hours.
