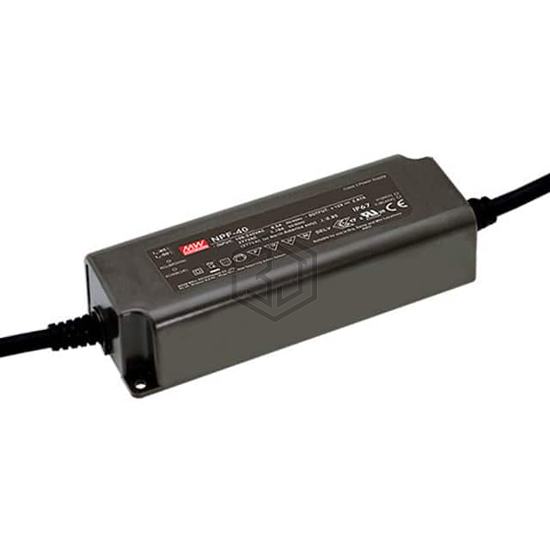

LED DVR CC/CV AC/DC 18-30V 1.34A
NPF-40-30 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DVR CC/CV AC/DC 18-30V 1.34A. Key specifications: operating temperature -40°C ~ 85°C, voltage - output 18 ~ 30V, current - output (max) 1.34A, size / dimension 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm).
In Stock: 4,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 18 ~ 30V |
| Current - Output (Max) | 1.34A |
| Power (Watts) | 40 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 89% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm) |
| Approval Agency | CB, CCC, CE, ENEC |
| Standard Number | - |
Submit your RFQ for NPF-40-30 and get a quote within 24 hours.
