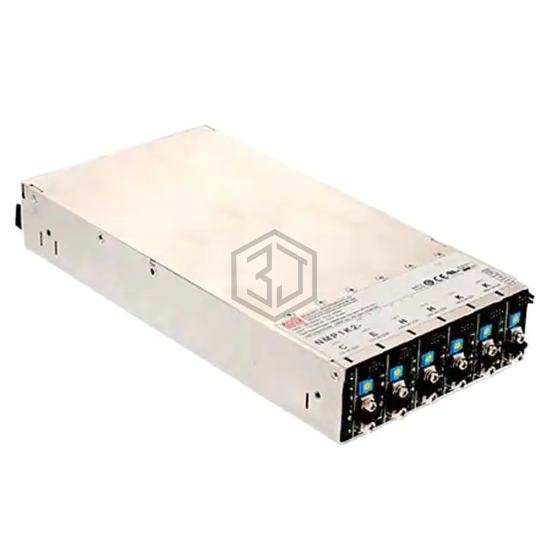

AC/DC CONVERTER 12V 3X5V 1020W
NMP1K2-#ECCCK-00 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 12V 3X5V 1020W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm).
In Stock: 8,445
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 5 |
| Voltage - Input | 90 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 5V |
| Voltage - Output 4 | 5V |
| Voltage - Output 5 | 48V |
| Voltage - Output 6 | - |
| Current - Output 1 | 20 A |
| Current - Output 2 | 36 A |
| Current - Output 3 | 36 A |
| Current - Output 4 | 36 A |
| Current - Output 5 | 5 A |
| Current - Output 6 | - |
| Power (Watts) | 1020W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 88.5% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
| Approval Agency | CB, CE, cURus, EAC, TUV |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for NMP1K2-#ECCCK-00 and get a quote within 24 hours.
