DC DC CONVERTER 5V 13W

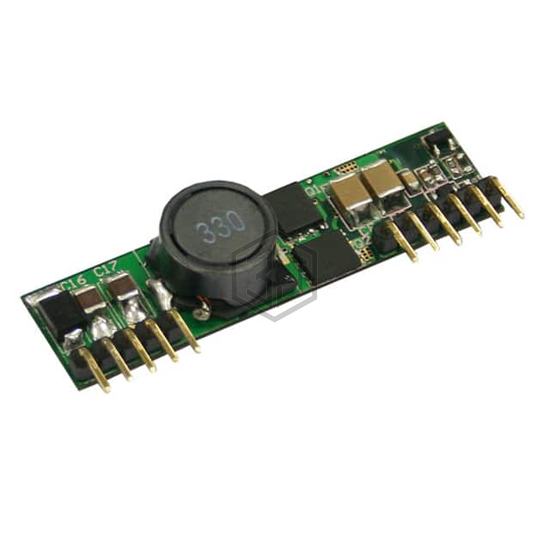

NID30S24-05 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 5V 13W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 65°C (With Derating), package / case 11-SIP Module, current - output (max) 2.5A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 53V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 13 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -25°C ~ 65°C (With Derating) |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | 11-SIP Module |
| Size / Dimension | 2.00" L x 0.42" W x 0.51" H (50.8mm x 10.7mm x 13.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for NID30S24-05 and get a quote within 24 hours.
