DC DC CONVERTER 15V 98W

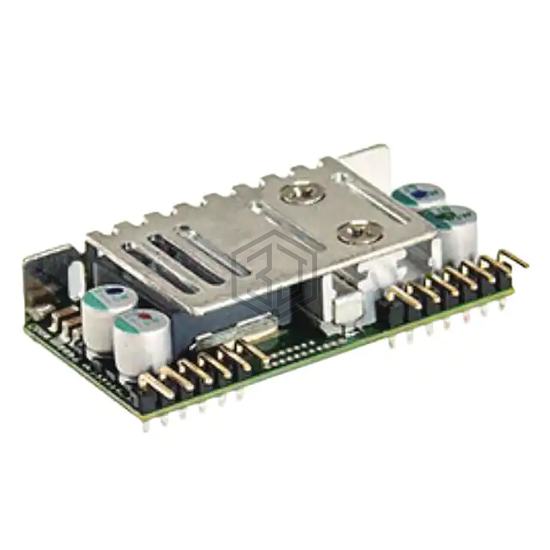

NID100-15 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 15V 98W. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C (With Derating), package / case 13-SIP Module, current - output (max) 6.5A.
In Stock: 136
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 53V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.5A |
| Power (Watts) | 98 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -30°C ~ 85°C (With Derating) |
| Efficiency | 97% |
| Mounting Type | Through Hole |
| Package / Case | 13-SIP Module |
| Size / Dimension | 2.00" L x 0.47" W x 1.08" H (50.8mm x 12.0mm x 27.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, EAC |
| Standard Number | - |
Submit your RFQ for NID100-15 and get a quote within 24 hours.
