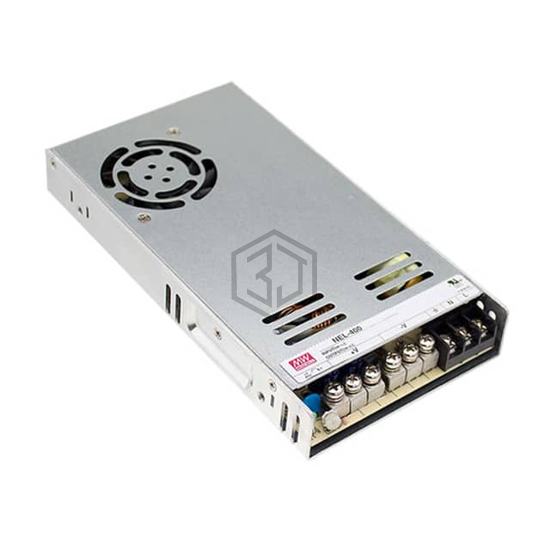

AC/DC CONVERTER 5V 400W
NEL-400-5 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 5V 400W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 60°C (With Derating), voltage - input 180 ~ 264 VAC, 254 ~ 370 VDC, size / dimension 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm).
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 180 ~ 264 VAC, 254 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 80 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 400W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 84% |
| Operating Temperature | -20°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
| Approval Agency | cURus |
| Standard Number | - |
Submit your RFQ for NEL-400-5 and get a quote within 24 hours.
