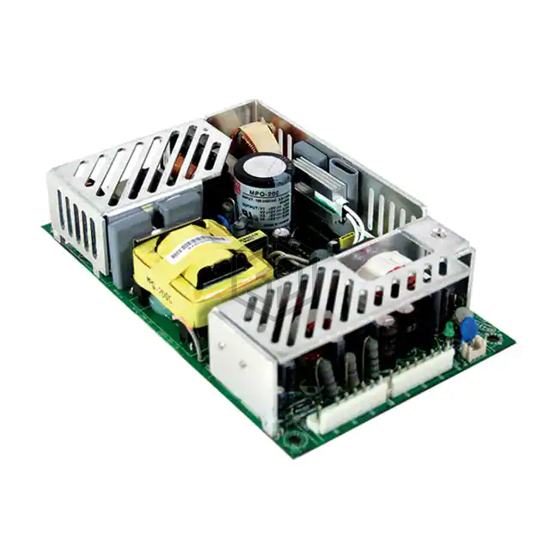

AC/DC CONVERTER 5V 12V 140W
MPD-200A is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 5V 12V 140W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.5mm).
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 15 A |
| Current - Output 2 | 5.4 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 140W (196W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 3 kV |
| Efficiency | 82% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | PFC, Remote On/Off, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.5mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for MPD-200A and get a quote within 24 hours.
