DC DC CONVERTER +/-15V 1W

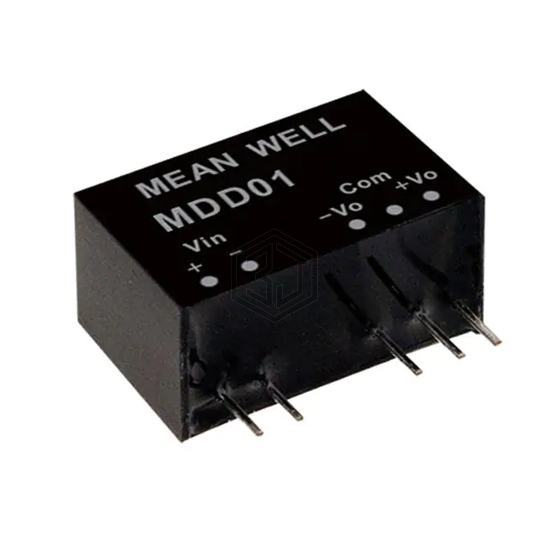

MDD01M-15 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER +/-15V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 7-SIP Module, 5 Leads, current - output (max) 34mA, 34mA.
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 34mA, 34mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 6 kV |
| Applications | Medical |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 76% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | 7-SIP |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for MDD01M-15 and get a quote within 24 hours.
