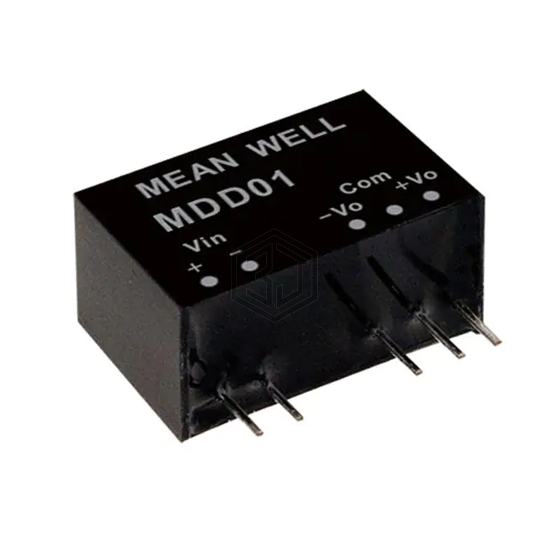

DC DC CONVERTER +/-9V 1W
MDD01L-09 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER +/-9V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 7-SIP Module, 5 Leads, current - output (max) 56mA, 56mA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 56mA, 56mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 6 kV |
| Applications | Medical |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | 7-SIP |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
