O/P +15V30A

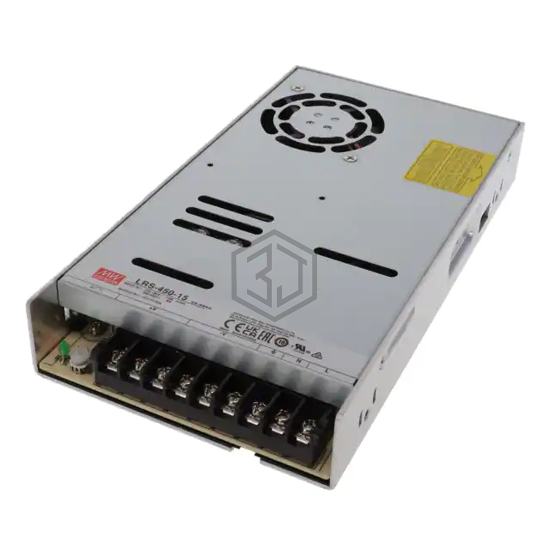

LRS-450-15 is a AC DC Converters manufactured by MEAN WELL USA Inc.. O/P +15V30A. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC, size / dimension 10.04" L x 4.88" W x 1.38" H (255.0mm x 124.0mm x 35.0mm).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | - |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 450W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 10.04" L x 4.88" W x 1.38" H (255.0mm x 124.0mm x 35.0mm) |
| Approval Agency | CB, CE, cURus, EAC, UKCA |
| Standard Number | 62368-1 |
Submit your RFQ for LRS-450-15 and get a quote within 24 hours.
